Conditional Formatting

Release 3.3.0 and above.

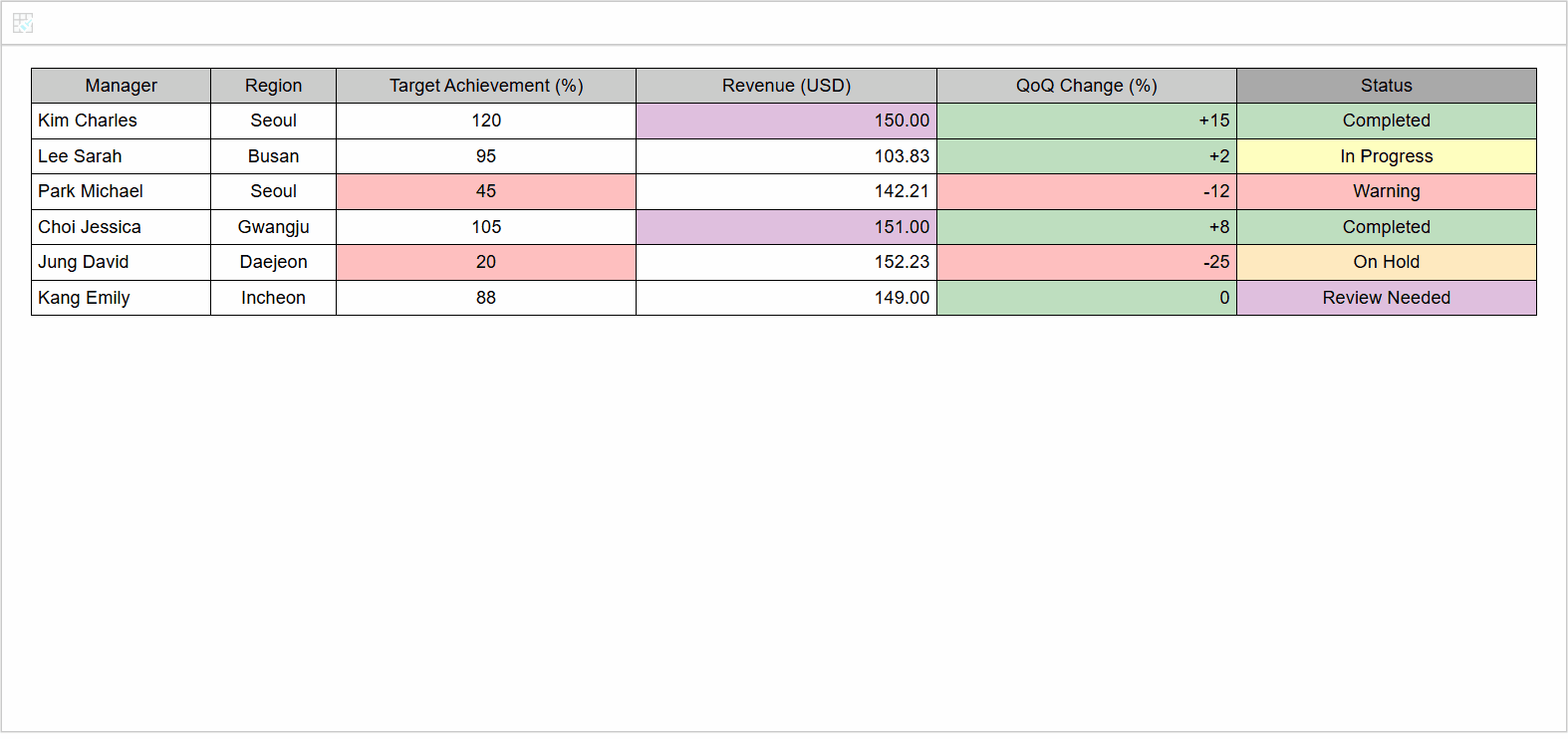

Conditional formatting automatically applies pre-defined styles when data inside a table cell meets a specific rule.

You don't need to format each cell manually — once a rule is set, the formatting updates automatically as the data changes.

Table of Contents

• Registration
• Button UI
• Create Conditional Formatting
  • Format range
  • Format rule
  • Supported rule list
  • Setting date display format
  • Format style
• Conditional Formatting List
  • Edit
  • Change priority
  • Delete
• Additional Features

Registration

Add to the toolbar

// synapeditor.config.js
{
  'editor.toolbar': [
    // ...
    'conditionalFormatting',
    // ...
  ]
}

Add to the table cell balloon

// synapeditor.config.js
{
  'editor.balloon': {
    // ...
    'tableCell': [
      'formulaInput', '-', 'fill', 'selectBorder', 'borderColor',
      'lineThickness', 'lineStyle', 'cellSize', 'mergeCell', 'splitCell',
      'fitTableWidth', '-', 'contentsAlign', 'verticalAlign',
      'deleteRow', 'deleteCol', 'cellProperties', 'tableProperties',
      'conditionalFormatting', 'deleteTable'
    ],
    // ...
  }
}

Button UI

The button activates when a cell inside a table is selected.

Clicking opens the conditional formatting dialog.

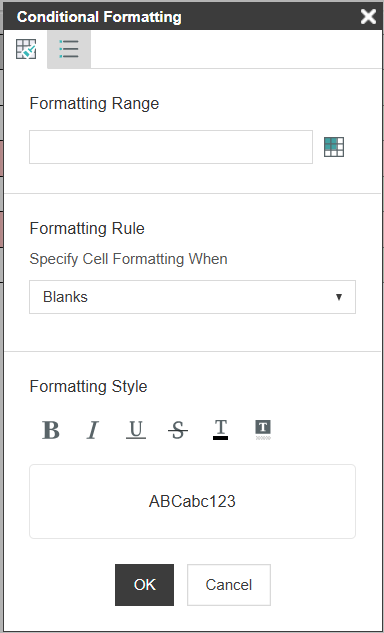

Create Conditional Formatting

A tab where you can create and edit conditional formatting.

Set the format range, rule, and style, then click Confirm to create the conditional formatting.

Format range

The range where the conditional formatting will be applied.

Enter in formats like A1, B2 or A1:B2.

Cell range selection

Click the cell range selection button next to the input box to open the cell range selection dialog, where you can drag-select cell ranges.

In cell range selection mode, row/column numbers are displayed on the table handles, making it easy to identify the selected range.

If you append a comma (,) after an existing range, the selection isn't cleared and you can add a new range.

Format rule

Set the condition to compare with cell data.

You can compare with values of types: number, text, date, or cell coordinate.

Supported rule list

About date rule application:

Date rules apply only when the display format is date.

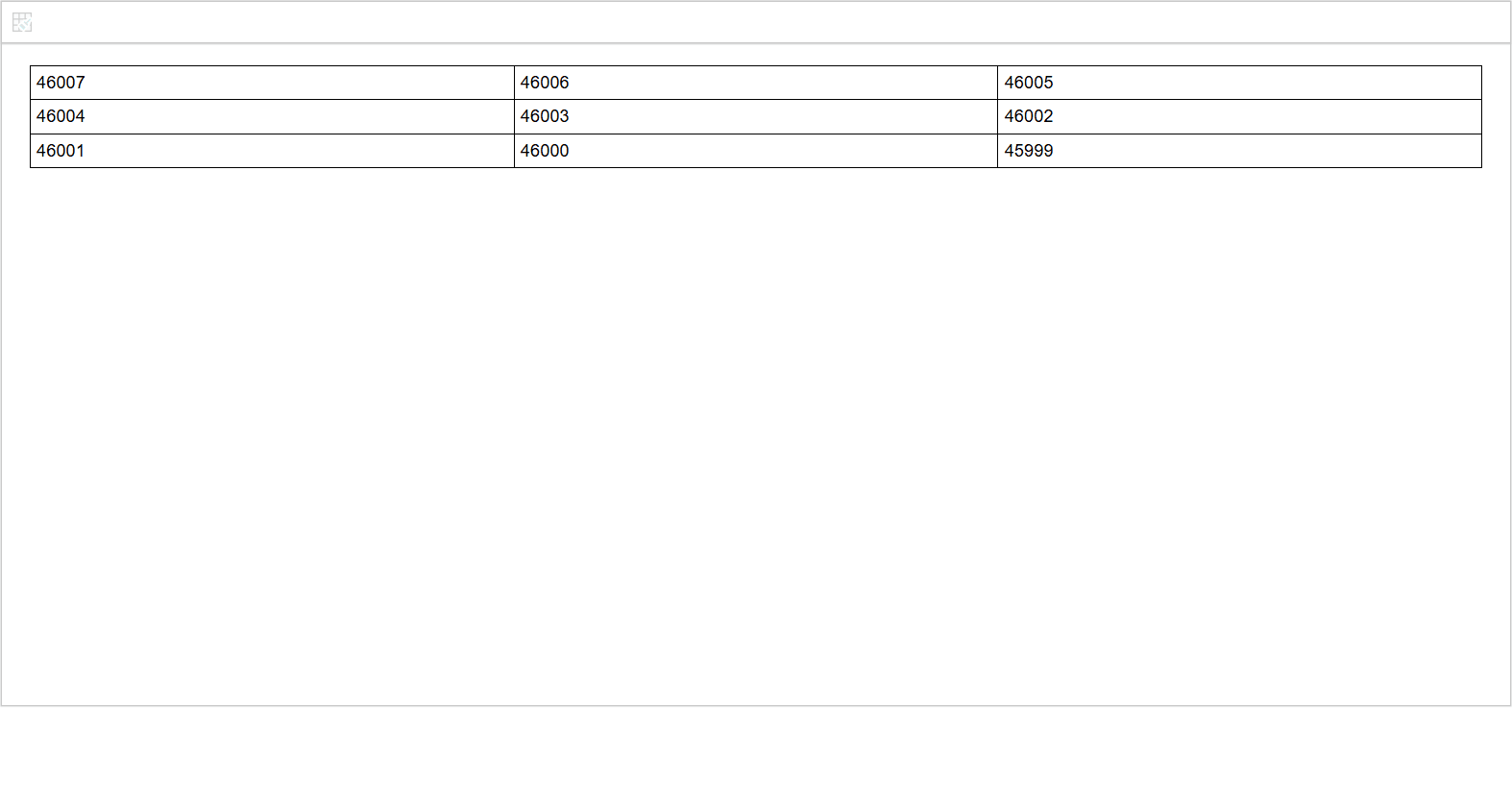

Setting date display format

Format style

Specifies the style to apply when the format rule is satisfied.

This style takes priority over any existing style applied to the cell.

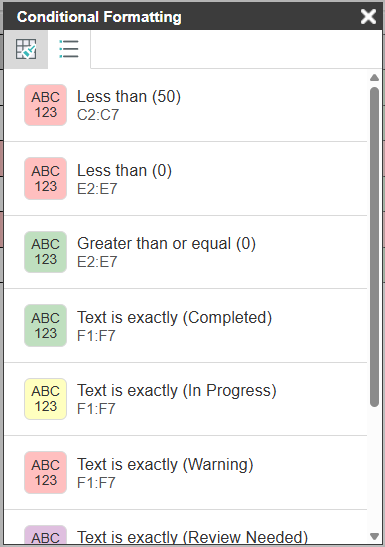

Conditional Formatting List

A tab to manage (edit, delete, reorder) the conditional formatting applied to the table.

The higher a rule is in the list, the higher its priority. When a cell satisfies multiple rules simultaneously, the formats are merged.

For overlapping properties, the higher-priority rule wins; non-overlapping properties are combined.

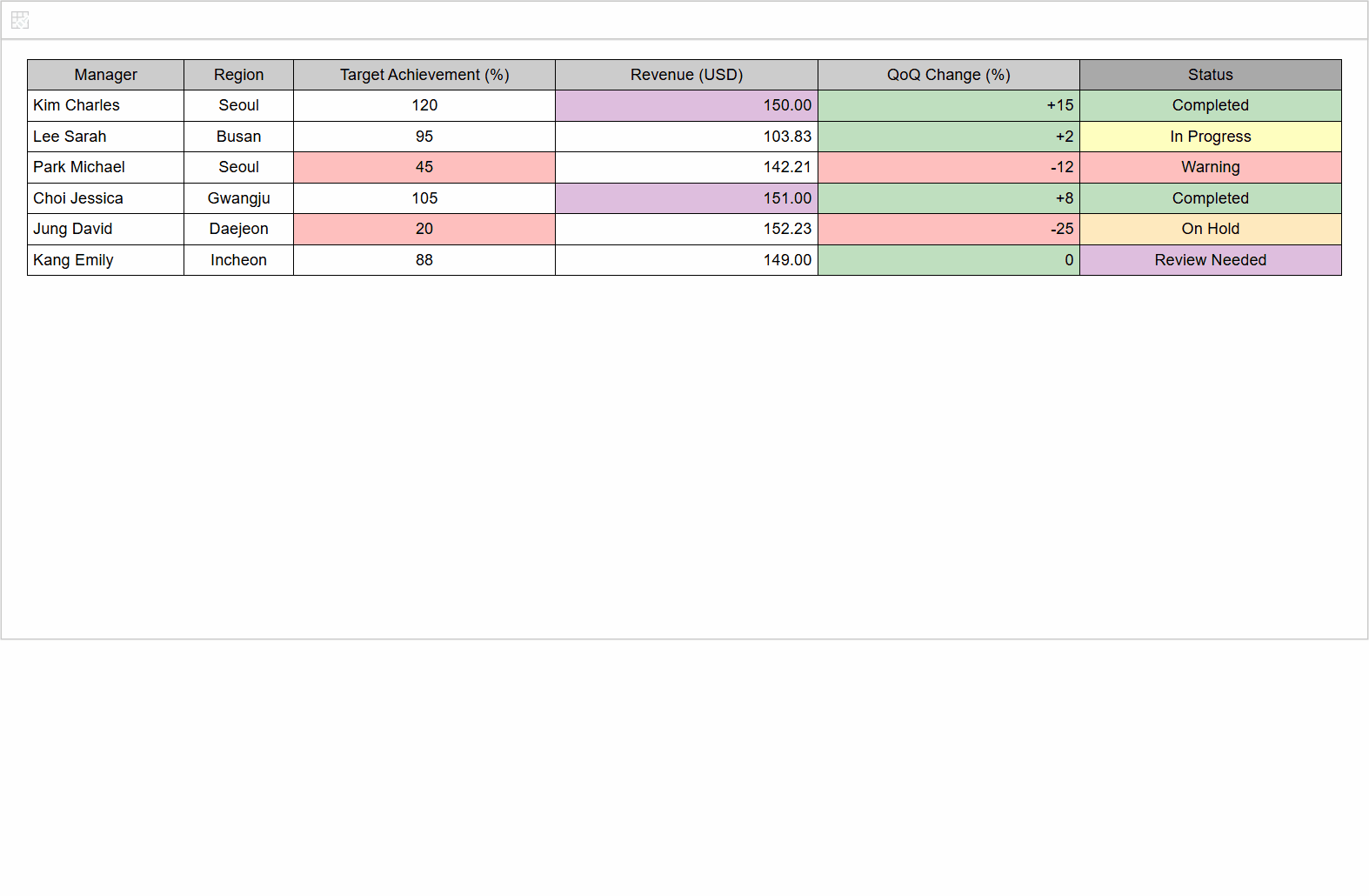

Edit

Click a conditional format to edit it.

Change priority

Drag and drop the conditional format handle to the desired location to change its priority.

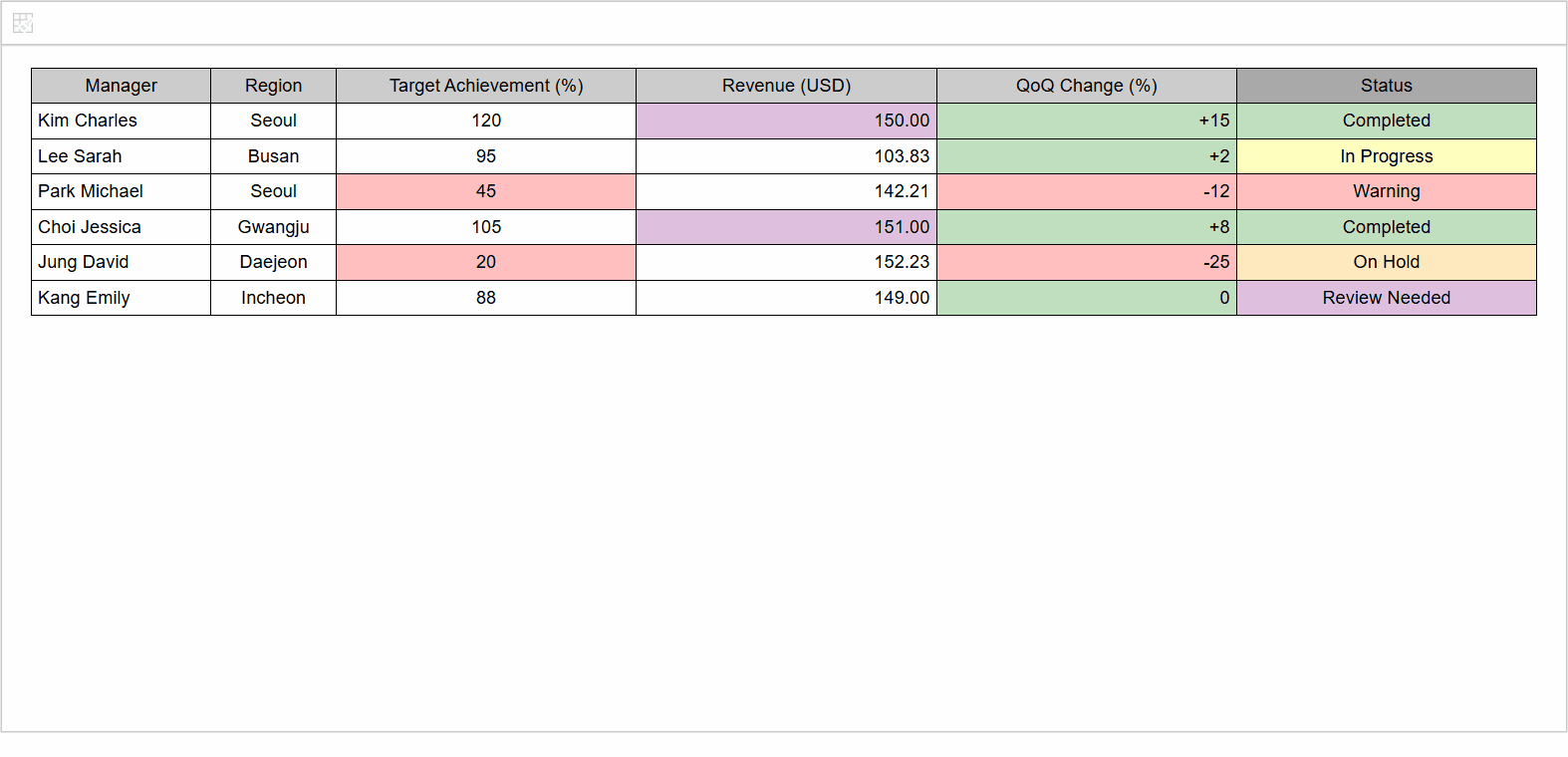

Delete

Additional Features
